A more detailed introduction#
The following notebook expands a bit on the “Getting started” one.
[1]:
import jax
import sbijax
%matplotlib inline
import matplotlib.pyplot as plt
Model definition#
To do approximate inference using sbijax, a user first has to define a prior model and a simulator function which can be used to generate synthetic data. We will be using a simple bivariate Gaussian as an example with the following generative model:
\begin{align} \mu &\sim \mathcal{N}_2(0, I)\\ \sigma &\sim \mathcal{N}^+(1)\\ y & \sim \mathcal{N}_2(\mu, \sigma^2 I) \end{align}
Using TensorFlow Probability, the prior model and simulator are implemented like this:
[2]:
from jax import numpy as jnp, random as jr
from tensorflow_probability.substrates.jax import distributions as tfd
def prior_fn():
prior = tfd.JointDistributionNamed(dict(
mean=tfd.Normal(jnp.zeros(2), 1.0),
scale=tfd.HalfNormal(jnp.ones(1)),
), batch_ndims=0)
return prior
def simulator_fn(seed: jr.PRNGKey, theta: dict[str, jax.Array]):
p = tfd.Normal(jnp.zeros_like(theta["mean"]), 1.0)
y = theta["mean"] + theta["scale"] * p.sample(seed=seed)
return y
[3]:
prior = prior_fn()
theta = prior.sample(seed=jr.PRNGKey(0), sample_shape=())
theta
[3]:
{'scale': Array([0.47995827], dtype=float32),
'mean': Array([0.62157685, 0.8429717 ], dtype=float32)}
[4]:
prior.log_prob(theta)
[4]:
Array(-2.7273278, dtype=float32)
[5]:
simulator_fn(seed=jr.PRNGKey(1), theta=theta)
[5]:
Array([0.54745346, 0.88362765], dtype=float32)
[6]:
theta = prior.sample(seed=jr.PRNGKey(2), sample_shape=(2,))
theta
[6]:
{'scale': Array([[0.48404777],
[0.3731677 ]], dtype=float32),
'mean': Array([[ 1.2550716 , 0.27969918],
[-0.66132253, -0.79632473]], dtype=float32)}
[7]:
prior.log_prob(theta)
[7]:
Array([-3.0075376, -2.6690357], dtype=float32)
[8]:
simulator_fn(seed=jr.PRNGKey(3), theta=theta)
[8]:
Array([[ 0.5550142 , 1.0248331 ],
[-0.51858354, -0.0609225 ]], dtype=float32)
Algorithm definition#
Having defined a model of interest, i.e., the prior and simulator functions, we construct an inferential method. We can use a pre-implemented method to construct a normalizing flow, but for the sake of demonstration we implement a MAF from scratch.
[9]:
import haiku as hk
import surjectors
import surjectors.nn
import surjectors.util
from sbijax import NLE
[10]:
n_dim_data = 2
n_layers, hidden_sizes = 5, (64, 64)
[11]:
def make_custom_affine_maf(n_dimension, n_layers, hidden_sizes):
def _bijector_fn(params):
means, log_scales = surjectors.util.unstack(params, -1)
return surjectors.ScalarAffine(means, jnp.exp(log_scales))
def _flow(method, **kwargs):
layers = []
order = jnp.arange(n_dimension)
for _ in range(5):
layer = surjectors.MaskedAutoregressive(
bijector_fn=_bijector_fn,
conditioner=surjectors.nn.MADE(
n_dimension,
list(hidden_sizes),
2,
w_init=hk.initializers.TruncatedNormal(0.001),
b_init=jnp.zeros,
),
)
order = order[::-1]
layers.append(layer)
layers.append(surjectors.Permutation(order, 1))
chain = surjectors.Chain(layers[:-1])
base_distribution = tfd.Independent(
tfd.Normal(jnp.zeros(n_dimension), jnp.ones(n_dimension)),
1,
)
td = surjectors.TransformedDistribution(base_distribution, chain)
return td(method, **kwargs)
td = hk.transform(_flow)
return td
[12]:
fns = prior_fn, simulator_fn
neural_network = make_custom_affine_maf(n_dim_data, n_layers, hidden_sizes)
model = NLE(fns, neural_network)
Training and Inference#
Inference is then as easy as simulating some data, fitting the data to the model, a sampling from the approximate posterior. The data set is a dictionary of dictionaries (a PyTree in JAX lingo). It contains samples for the simulator function, called y, and parameter samples from the prior model, called theta.
[13]:
data, _ = model.simulate_data(
jr.PRNGKey(1),
n_simulations=10_000,
)
data
[13]:
{'y': Array([[ 0.07692909, 0.7882271 ],
[-1.2418504 , -0.25333643],
[ 1.1943562 , -2.124853 ],
...,
[ 1.3316323 , 0.5488601 ],
[ 4.862982 , -4.1227694 ],
[-0.00955033, 0.989019 ]], dtype=float32),
'theta': {'scale': Array([[0.9232396 ],
[0.36471593],
[0.6795394 ],
...,
[0.11454558],
[1.260745 ],
[0.5012804 ]], dtype=float32),
'mean': Array([[ 0.30212572, 0.67478853],
[-0.963459 , 0.086253 ],
[ 0.39044896, -2.2378268 ],
...,
[ 1.3652769 , 0.6302657 ],
[ 2.7543025 , -1.9100804 ],
[-0.16545922, 0.6475435 ]], dtype=float32)}}
We then fit the model using the typical flow matching loss.
[14]:
params, losses = model.fit(
jr.PRNGKey(2),
data=data
)
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 100/100 [01:04<00:00, 1.54it/s]
Finally, we sample from the posterior distribution for a specific observation \(y_{\text{obs}}\).
[15]:
y_obs = jnp.array([-1.0, 1.0])
inference_results, diagnostics = model.sample_posterior(
jr.PRNGKey(3), params, y_obs, n_chains=4, n_samples=10_000, n_warmup=5_000
)
[16]:
print(inference_results)
<xarray.DataTree>
Group: /
├── Group: /posterior
│ Dimensions: (chain: 4, draw: 5000, mean_dim: 2, scale_dim: 1)
│ Coordinates:
│ * chain (chain) int64 32B 0 1 2 3
│ * draw (draw) int64 40kB 0 1 2 3 4 5 6 ... 4994 4995 4996 4997 4998 4999
│ * mean_dim (mean_dim) int64 16B 0 1
│ * scale_dim (scale_dim) int64 8B 0
│ Data variables:
│ mean (chain, draw, mean_dim) float32 160kB ...
│ scale (chain, draw, scale_dim) float32 80kB ...
│ Attributes:
│ created_at: 2026-03-19T15:30:39.688674+00:00
│ creation_library: ArviZ
│ creation_library_version: 1.0.0
│ creation_library_language: Python
└── Group: /observed_data
Dimensions: (chain: 2)
Coordinates:
* chain (chain) int64 16B 0 1
Data variables:
y (chain) float32 8B ...
Attributes:
created_at: 2026-03-19T15:30:39.689207+00:00
creation_library: ArviZ
creation_library_version: 1.0.0
creation_library_language: Python
[17]:
print(inference_results.posterior)
<xarray.DataTree 'posterior'>
Group: /posterior
Dimensions: (chain: 4, draw: 5000, mean_dim: 2, scale_dim: 1)
Coordinates:
* chain (chain) int64 32B 0 1 2 3
* draw (draw) int64 40kB 0 1 2 3 4 5 6 ... 4994 4995 4996 4997 4998 4999
* mean_dim (mean_dim) int64 16B 0 1
* scale_dim (scale_dim) int64 8B 0
Data variables:
mean (chain, draw, mean_dim) float32 160kB ...
scale (chain, draw, scale_dim) float32 80kB ...
Attributes:
created_at: 2026-03-19T15:30:39.688674+00:00
creation_library: ArviZ
creation_library_version: 1.0.0
creation_library_language: Python
Model diagnostics and visualization#
Sbijax provides basic functionality to analyse posterior draws. We show some visualizations below.
[18]:

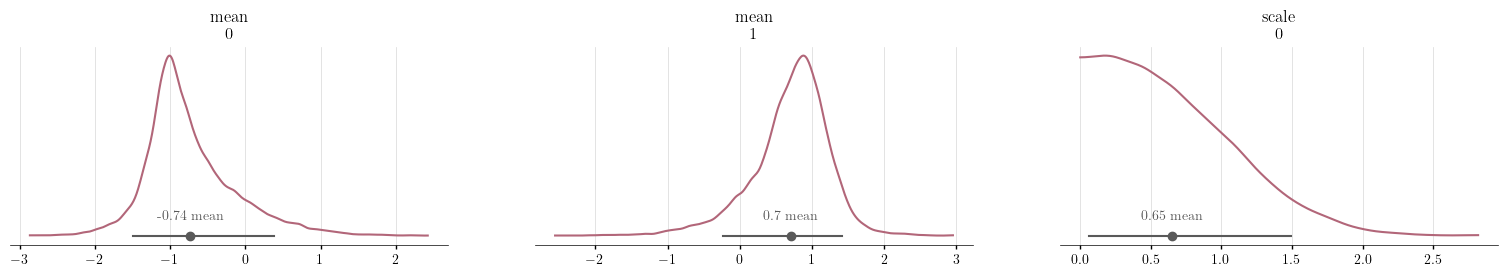

sbijax.plot_posterior(inference_results)
plt.show()
[19]:

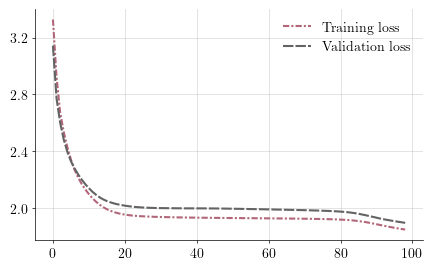

sbijax.plot_loss_profile(losses[1:])
plt.show()
[20]:

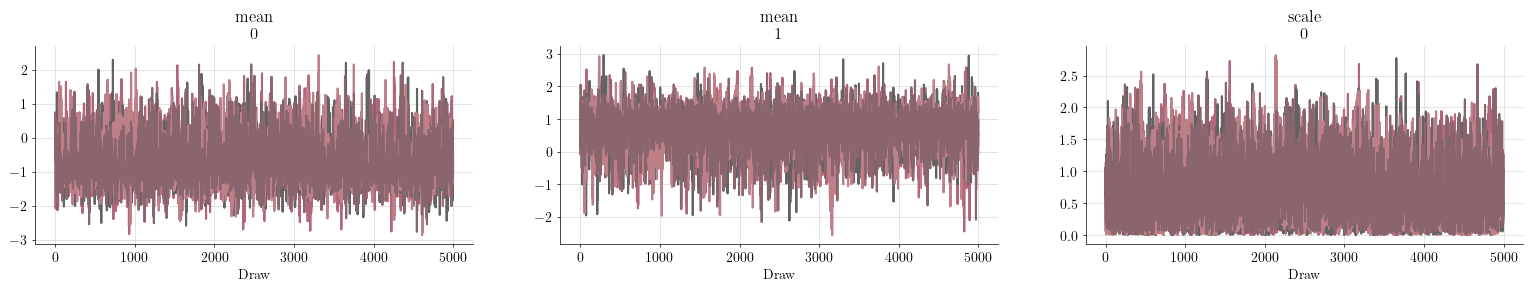

sbijax.plot_trace(inference_results)
plt.show()
[21]:
_, axes = plt.subplots(figsize=(6, 3), ncols=2)
sbijax.plot_rhat_and_ress(inference_results, axes=axes)
plt.show()
[22]:

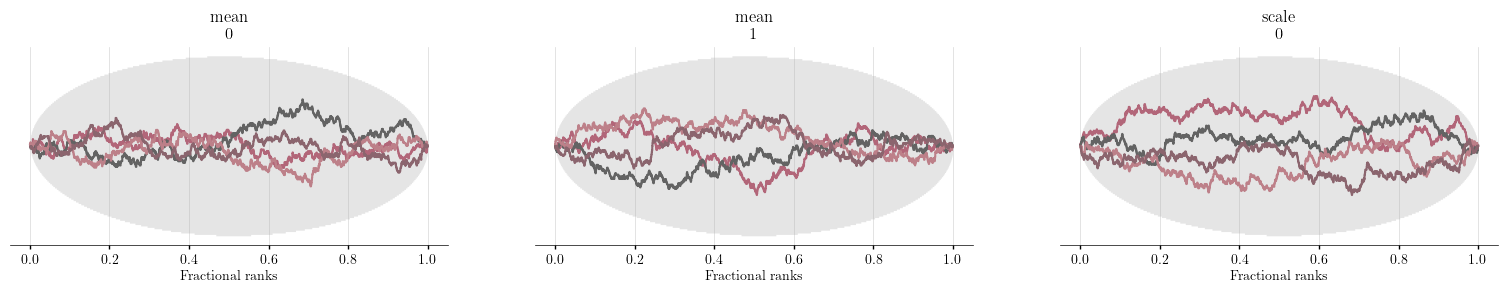

sbijax.plot_rank(inference_results)
plt.show()
[23]:

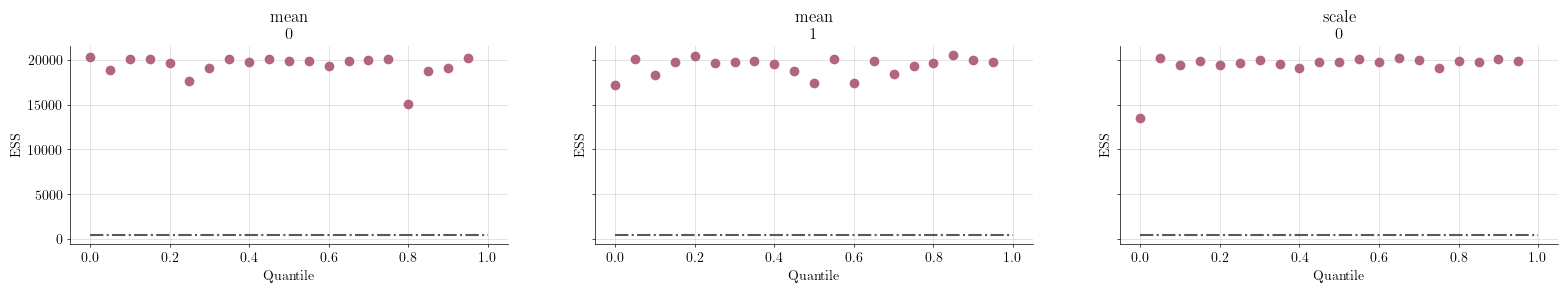

sbijax.plot_ess(inference_results)
plt.show()
Sequential inference#
sbijax supports sequential training.
[24]:
from sbijax.util import stack_data
n_rounds = 1
data, params = None, {}
for i in range(n_rounds):
new_data, _ = model.simulate_data(
jr.fold_in(jr.PRNGKey(1), i),
params=params,
observable=y_obs,
data=data,
)
data = stack_data(data, new_data)
params, info = model.fit(jr.fold_in(jr.PRNGKey(2), i), data=data)
_ = model.sample_posterior(
jr.PRNGKey(3), params, y_obs
)
28%|█████████████████████████████████████████▏ | 282/1000 [08:30<21:39, 1.81s/it]
Session info#
[25]:
import session_info
session_info.show(html=False)
-----
